Buying a luxurious and comfortable area that can be assembled quickly? Look absolutely no further than Chuanjin's 2023 luxury prefab modern pack 20ft 40ft flat prefabricated modular office assemble home ready made 1 bedroom house.

This was built to offer sleek and convenience you need, without the hassle of traditional household construction. This one-bedroom house was built from top-quality materials and carries a modern and stylish design that is both practical and gorgeous.

This is an easy task to construct and create, making this to be a perfect solution if you are purchasing a simple and easy method to produce a new flat-pack designed home. This is the ideal option if you are interested in a permanent residence or a temporary one.

Among the top features of this is its modular design which will allow you to alter the area for you personally. This could be modified to meet up with your particular demands whether you may an additional space or a more impressive living area.

This has all the features you need to have a comfortable and enjoyable experience. This is inviting and roomy, giving you the chance to relax and amuse. This features cooking area with high-end devices, making this to be the ideal place in preparing delicious meals.

The sack is cozy and roomy, with a good amount of area for a king-size bed and all sorts of furnishings. The toilet is modern and trendy, with top-quality fixtures and finishes

2023 luxury prefab modern 20ft 40ft flat pack container prefabric modular office assemble home ready made 1 bedroom house details

Why Choose Us

2023 luxury prefab modern 20ft 40ft flat pack container prefabric modular office assemble home ready made 1 bedroom house factory

2023 luxury prefab modern 20ft 40ft flat pack container prefabric modular office assemble home ready made 1 bedroom house details

2023 luxury prefab modern 20ft 40ft flat pack container prefabric modular office assemble home ready made 1 bedroom house supplier

Product specifications	External dimension mm	5800 L * 2500 W * 2380 H MM
	Folding state mm	5800 2480 570
	Total mass kg	1000~1300 Including doors and Windows and simple indoor electrical switch socket 1*40HQ It holds 8 sets]
Main body frame	Top frame	Top main beam: Rectangular square tube60×80×1.3mm
		Top bearing bottom: Rectangular square tube40×40×1.3mm
		Internal ceiling: Color steel veneerV930*0.25㎜
		Insulating glass wool: Glass wool roll 50mm unit weight 16kg
		External roof panel: Galvanized sheet0.5mm
		Protective coating for integral frame: Electrostatic spray/high gloss
		Hanging head: 155110 6mm
	Bottom frame	Bottom main beam: Rectangular square tube 60×140×1.3mm
		Bottom bearing: Rectangular square tube 40×40×1.3mm
		Front and rear main beams: Rectangular square tube60×80×1.3mm
	Stand column	Side wall frame: Rectangular square tube40×60×1.3mm
		Galvanized buckle groove: 50mm
		Fold hinge: Galvanized hinge 13mm
Floor	Floor board	Fireproof glass magnesium floor18mm
Door	High grade steel door	High-quality security door Warm white 970mm*1970mm
Window	The anti-theft window	930*1120, Plastic steel anti-theft integrated window、Glass thickness4mm（Warm white） 2PCs
Simple electric distribution	Simple electric distribution	Electrical wiring，Install in strict accordance with moisture-proof specifications，All electricalAll electrical products shall comply with ce certification. Connect the circuit according to the circuit engineering specification，indoor: coil in4² National standard flexible copper wire, 20 Acircuit breaker 1, Socket incoming line 2.5², three-hole single socket 1pc，5-hole single socket 3pcs, 2 lamps
Wallboard	Model	50mm Composite plate0.23mm+Basalt rock wool(unit weight50kg）+0.23mm

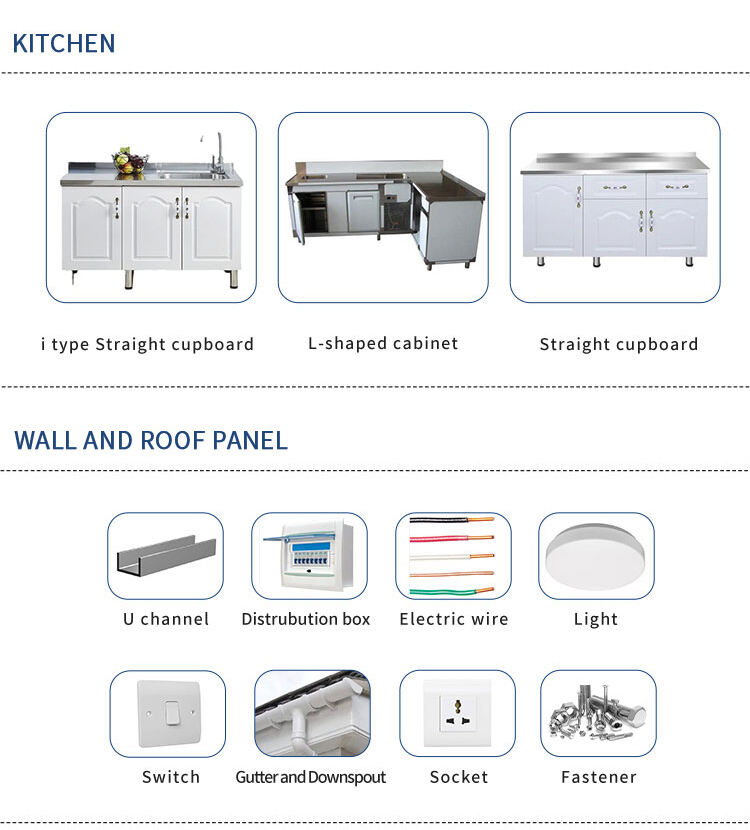

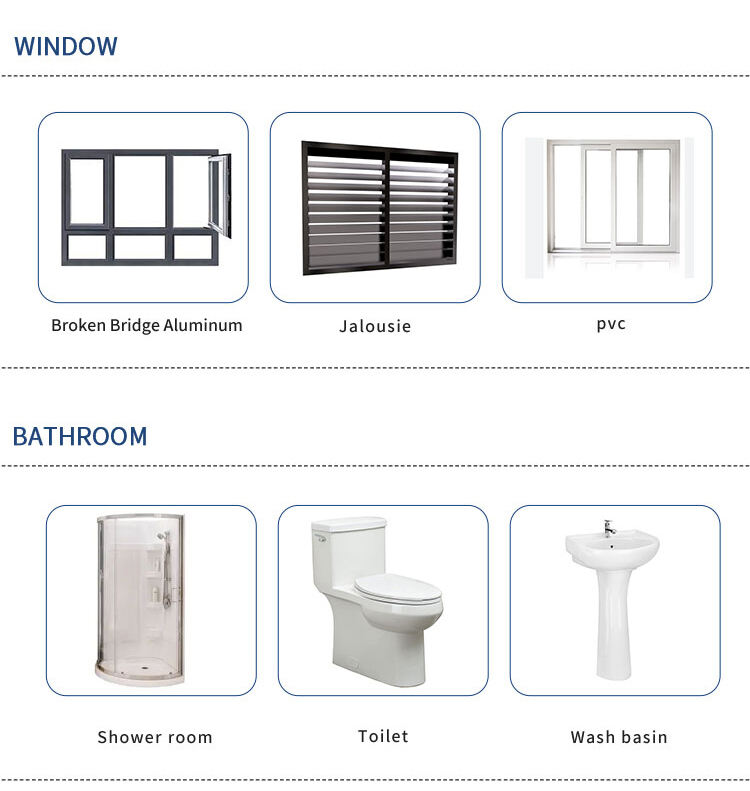

Optional Accessories	Optional Accessories	Furniture, sanitary, kitchen, A/C, electrical appliance for accomodation, office, dormitory, toliet, kitchen, bathroom, shower, steel roof, cladding panels, decorative material, etc
Load bearing/level	Roof bearing capacity	≧50kg/m²
	Aisle bearing capacity	≧200kg/m²
	Floor load bearing	≧150kg/m²
	Wall side pressure	≧80kg/m²
	Wall deformation coefficient	≦300kg/m²
	Fire protection level	Class A
	Seismic grade	Level 10
	Wind resistance rating	Level 10

2023 luxury prefab modern 20ft 40ft flat pack container prefabric modular office assemble home ready made 1 bedroom house supplier



Accumulated more than 13 years of experience

It has business partners all over the country and relatively perfect business channels, creating a good brand and goodwill, layers of screening, comprehensive support and guarantee.



Strong product research and development strength

Strong product research and development strength, assembly technology and superb production and construction team, for the company to win the long-term letter of customers for the company to win the long-term trust and support of customers!



A wide range of sales networks

At present, the sales network is all over the Chinese mainland, Mongolia, many countries in Africa, as well as Myanmar, Indonesia and other countries have established long-term cooperative relations with a number of well-known group companies at home and abroad!



Perfect after-sales service to customers

Lay the cornerstone with integrity, win trust with focus, seek development with innovation, "serve customers, achieve employees, contribute to society" as the enterprise purpose, seek development with innovation!
